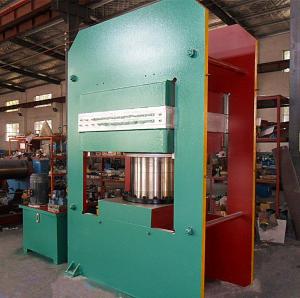

rubber powder solid tyre vulcanizing press
1. Production Description:
| Model | Total Pressure(MN) | Daylight(mm) | Working Layer | Piston Stroke(mm) | Motor Power(KW) | Over Diameter (L*W*H) (mm) |
| XLB-350*350*2 | 0.25 | 125 | 2 | 250 | 2.2 | 1200× 580
× 1200 |
| XLB-400*400*2 | 0.50 | 125 | 2 | 250 | 2.2 | 1400× 500
× 1400 |
| XLB-600*600*2 | 1.00 | 125 | 2 | 250 | 2.2 | 1880× 820
× 1680 |
Being a column structure and downward pressing type, the heating plate opens by the self-weight of the heating plate, platform and plunger. The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure.
2.Column rubber tile vulcanizing press lightspots display:
- Electrical control system:
Complete the perfect control system (including wire and cable and safety protection devices, etc.),Use automatic time relay,can achieve Automatic close mold,exhaust,stuffy,Vulcanization time, supplement pressure,open mold etc working process, also the automatic control and hand control can be switched easily.
Adopts Q235 steel plates. In order to guarantee the make precision, it is applied with automatic cutting baiting, mechanical slicer producing welded groove, carbon dioxide gas shielded welding.
Adopts ZG270-500 and piston stroke adpots hard cold chilled alloy cast iron, And sealing structure applies the combined structure with double sealing ring and one dustproof ring to guarantee longer service.
- Safety proteection of vulcanizing press machine:
Rubber vulcanizing press advantages:
1. Simple and convenient structure, flexible operation, commodious space. The cylinder and plunger are made up of high quality materials.
2. Hydraulic station and electric cabinet are Located in both sides of the main engine.
3. Conveniently operations
4. Without oil spilling or off pressure.
5. CE Standards and ISO9001 SGS Certifications.
3.Delivery &payment:
- Delivery lead time: 35-40 days since receiving the deposit
- Packing way:
- 1) wrapped with stretch film, avoid rubbing the paint off thesurface
- 2) wooden packaging can be customized
- 3) key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.
- Term of payment: T/T (30% deposit, 70% balance of B/L) ; L/C
